Подшипники радиальные шариковые однорядные
/ Подшипники шариковые радиальные однорядные с упорным бортом на наружном кольце
Подшипники шариковые радиальные однорядные с упорным бортом на наружном кольце

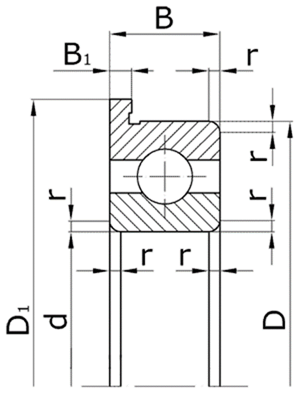

Схема
Обозначение | Размеры | Масса (кг) | ||||||
---|---|---|---|---|---|---|---|---|
По ГОСТу | Международное | d | D | d1 | B | r | B1 | |
84001/1.5 | 1.5 | 6 | 7.5 | 2.5 | 0.3 | 0.6 | 0.00042 | |
840012 | 2 | 7 | 8.5 | 2.8 | 0.3 | 0.7 | 0.00064 | |
84001/2.5 | 2.5 | 8 | 9.5 | 2.8 | 0.3 | 0.7 | 0.00083 | |
840013 | 3 | 9 | 10.5 | 3 | 0.3 | 0.7 | 0.001 | |
840014 | 4 | 12 | 13.5 | 4 | 0.4 | 1 | 0.0023 | |
840015 | 5 | 14 | 16 | 5 | 0.4 | 1 | 0.0039 | |
840016 | 6 | 17 | 19 | 6 | 0.5 | 1.2 | 0.008 | |
840017 | 7 | 19 | 22 | 6 | 0.5 | 1.5 | 0.01 | |
840018 | 8 | 22 | 25 | 7 | 0.5 | 1.5 | 0.015 | |
840019 | 9 | 24 | 27 | 7 | 0.5 | 1.5 | 0.018 | |
840100 | 10 | 26 | 28 | 8 | 0.5 | 2 | 0.02 | |
840023 | 3 | 10 | 11.5 | 4 | 0.3 | 1 | 0.002 | |
840024 | 4 | 13 | 15 | 5 | 0.4 | 1 | 0.004 | |
840025 | 5 | 16 | 18 | 5 | 0.5 | 1 | 0.006 | |
840026 | 6 | 19 | 22 | 6 | 0.5 | 1.5 | 0.01 | |
840027 | 7 | 22 | 25 | 7 | 0.5 | 1.5 | 0.012 | |
840028 | 8 | 24 | 26 | 8 | 0.5 | 2 | 0.019 | |
840029 | 9 | 26 | 28 | 8 | 1 | 2 | 0.02 | |
840200 | 10 | 30 | 32.25 | 9 | 1 | 2.25 | 0.032 | |
840033 | 3 | 13 | 15 | 5 | 0.4 | 1 | - | |
840034 | 4 | 16 | 18 | 5 | 0.5 | 1 | 0.005 | |
840035 | 5 | 19 | 22 | 6 | 0.5 | 1.5 | 0.009 | |
840036 | 6 | 22 | 25 | 7 | 0.5 | 1.5 | 0.014 | |
840037 | 7 | 26 | 29 | 9 | 0.5 | 2 | 0.026 | |
840038 | 8 | 28 | 30.25 | 9 | 0.5 | 2.25 | 0.029 | |
840039 | 9 | 30 | 32.5 | 10 | 1 | 2.5 | 0.035 | |
840300 | 10 | 35 | 37.75 | 11 | 1 | 2.75 | 0.053 | |
1840002 | 2 | 4 | 4.8 | 1.2 | 0.1 | 0.35 | 0.0001 | |
184000/2.5 | 2.5 | 5 | 6 | 1.5 | 0.15 | 0.4 | 0.00018 | |
1840003 | 3 | 6 | 7.2 | 2 | 0.15 | 0.6 | 0.00026 | |
1840004 | 4 | 7 | 8.2 | 2 | 0.15 | 0.6 | 0.00035 | |
1840005 | 5 | 8 | 9.2 | 2 | 0.15 | 0.6 | 0.00043 | |
1840006 | 6 | 10 | 11.2 | 2.5 | 0.2 | 0.6 | 0.00074 | |
1840007 | 7 | 11 | 12.2 | 2.5 | 0.2 | 0.6 | 0.0008 | |
1840008 | 8 | 12 | 13.2 | 2.5 | 0.2 | 0.6 | 0.00085 | |
1840009 | 9 | 14 | 15.5 | 3 | 0.2 | 0.8 | 0.0014 | |
1840000 | 10 | 15 | 16.5 | 3 | 0.2 | 0.8 | 0.00242 | |
184008/0.6 | 0.6 | 2.5 | 3.3 | 1 | 0.1 | 0.3 | - | |
1840081 | 1 | 3 | 3.8 | 1 | 0.1 | 0.3 | 0.00006 | |
184008/1.5 | 1.5 | 4 | 5 | 1.2 | 0.1 | 0.4 | 0.00009 | |
1840082 | 2 | 5 | 6.1 | 1.5 | 0.15 | 0.5 | 0.00019 | |
184008/2.5 | 2.5 | 6 | 7.1 | 1.8 | 0.15 | 0.5 | 0.00026 | |
1840083 | 3 | 7 | 8.1 | 2 | 0.2 | 0.5 | 0.00038 | |
1840084 | 4 | 9 | 10.3 | 2.5 | 0.2 | 0.6 | 0.00076 | |
1840085 | 5 | 11 | 12.5 | 3 | 0.3 | 0.8 | 0.0013 | |
1840086 | 6 | 13 | 15 | 3.5 | 0.3 | 1 | 0.0022 | |
1840087 | 7 | 14 | 16 | 3.5 | 0.3 | 1 | 0.0024 | |
1840088 | 8 | 16 | 18 | 4 | 0.4 | 1 | 0.0035 | |
1840089 | 9 | 17 | 19 | 4 | 0.4 | 1 | 0.006 | |
1840800 | 10 | 19 | 21 | 5 | 0.5 | 1 | 0.0092 | |
1840091 | 1 | 4 | 5 | 1.6 | 0.2 | 0.5 | 0.00014 | |
184009/1.5 | 1.5 | 5 | 6.5 | 2 | 0.3 | 0.6 | 0.00026 | |
1840092 | 2 | 6 | 7.5 | 2.3 | 0.3 | 0.6 | 0.0004 | |
184009/2.5 | 2.5 | 7 | 8.5 | 2.5 | 0.3 | 0.7 | 0.0006 | |
1840093 | 3 | 8 | 9.5 | 3 | 0.3 | 0.7 | 0.0008 | |
1840094 | 4 | 11 | 12.5 | 4 | 0.3 | 1 | 0.0021 | |
1840095 | 5 | 13 | 15 | 4 | 0.4 | 1 | 0.0026 | |
1840096 | 6 | 15 | 17 | 5 | 0.4 | 1.2 | 0.0041 | |
1840097 | 7 | 17 | 19 | 5 | 0.5 | 1.2 | 0.0051 | |
1840098 | 8 | 19 | 22 | 6 | 0.5 | 1.5 | 0.0081 | |
1840099 | 9 | 20 | 23 | 6 | 0.5 | 1.5 | 0.0083 | |
1840900 | 10 | 22 | 25 | 6 | 0.5 | 1.5 | 0.0097 |
