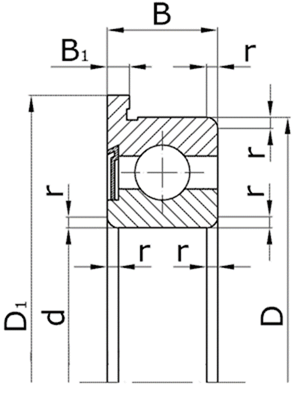

Подшипники шариковые радиальные однорядные с упорным бортом на наружном кольце и одной защитной шайбой
| Обозначение | Размеры | Масса (кг) | ||||||
|---|---|---|---|---|---|---|---|---|
| По ГОСТу | Международное | d | D | d1 | B | r | B1 | |
| 86001/1.5 | 1.5 | 6 | 2.5 | 0.3 | 0.6 | 0.00042 | ||
| 860012 | 2 | 7 | 2.8 | 0.3 | 0.7 | 0.00064 | ||
| 86001/2.5 | 2.5 | 8 | 2.8 | 0.3 | 0.7 | 0.00083 | ||
| 860013 | 3 | 9 | 3 | 0.3 | 0.7 | 0.001 | ||
| 860014 | 4 | 12 | 4 | 0.4 | 1 | 0.0023 | ||
| 860015 | 5 | 14 | 5 | 0.4 | 1 | 0.0039 | ||
| 860016 | 6 | 17 | 6 | 0.5 | 1.2 | 0.008 | ||
| 860017 | 7 | 19 | 6 | 0.5 | 1.5 | 0.01 | ||
| 860018 | 8 | 22 | 7 | 0.5 | 1.5 | 0.015 | ||
| 860019 | 9 | 24 | 7 | 0.5 | 1.5 | 0.018 | ||
| 860100 | 10 | 26 | 8 | 0.5 | 2 | 0.02 | ||
| 860023 | 3 | 10 | 4 | 0.3 | 1 | 0.002 | ||
| 860024 | 4 | 13 | 5 | 0.4 | 1 | 0.004 | ||
| 860025 | 5 | 16 | 5 | 0.5 | 1 | 0.006 | ||
| 860026 | 6 | 19 | 6 | 0.5 | 1.5 | 0.01 | ||
| 860027 | 7 | 22 | 7 | 0.5 | 1.5 | 0.012 | ||
| 860028 | 8 | 24 | 8 | 0.5 | 2 | 0.019 | ||
| 860029 | 9 | 26 | 8 | 1 | 2 | 0.02 | ||
| 860200 | 10 | 30 | 9 | 1 | 2.25 | 0.032 | ||
| 860033 | 3 | 13 | 5 | 0.4 | 1 | - | ||
| 860034 | 4 | 16 | 5 | 0.5 | 1 | 0.005 | ||
| 860035 | 5 | 19 | 6 | 0.5 | 1.5 | 0.009 | ||
| 860036 | 6 | 22 | 7 | 0.5 | 1.5 | 0.014 | ||
| 860037 | 7 | 26 | 9 | 0.5 | 2 | 0.026 | ||
| 860038 | 8 | 28 | 9 | 0.5 | 2.25 | 0.029 | ||
| 860039 | 9 | 30 | 10 | 1 | 2.5 | 0.035 | ||
| 860300 | 10 | 35 | 11 | 1 | 2.75 | 0.053 | ||
| 1860092 | 2 | 6 | 2.3 | 0.3 | 0.6 | 0.0004 | ||
| 186009/2.5 | 2.5 | 7 | 2.5 | 0.3 | 0.7 | 0.0006 | ||
| 1860093 | 3 | 8 | 3 | 0.3 | 0.7 | 0.0008 | ||
| 1860094 | 4 | 11 | 4 | 0.3 | 1 | 0.0021 | ||
| 1860095 | 5 | 13 | 4 | 0.4 | 1 | 0.0026 | ||
| 1860096 | 6 | 15 | 5 | 0.4 | 1.2 | 0.0041 | ||
| 1860097 | 7 | 17 | 5 | 0.5 | 1.2 | 0.0051 | ||
| 1860098 | 8 | 19 | 6 | 0.5 | 1.5 | 0.0081 | ||
| 1860099 | 9 | 20 | 6 | 0.5 | 1.5 | 0.0083 | ||
| 1860900 | 10 | 22 | 6 | 0.5 | 1.5 | 0.0097 | ||
| 2860083 | 3 | 7 | 2.5 | 0.2 | 0.7 | 0.00049 | ||
| 2860084 | 4 | 9 | 3.5 | 0.2 | 1 | 0.00079 | ||
| 2860085 | 5 | 11 | 4 | 0.3 | 1 | - | ||
| 2860086 | 6 | 13 | 5 | 0.3 | 1.1 | 0.0029 | ||
| 2860087 | 7 | 14 | 5 | 0.3 | 1.1 | 0.0032 | ||
| 2860088 | 8 | 16 | 5 | 0.4 | 1.1 | 0.0042 | ||
| 2860089 | 9 | 17 | 5 | 0.4 | 1.1 | 0.0061 | ||
| 2860800 | 10 | 19 | 6 | 0.5 | 1.3 | - | ||
| 3860081 | 1 | 3 | 1.5 | 0.1 | 0.45 | 0.00006 | ||
| 386008/1.5 | 1.5 | 4 | 2 | 0.1 | 0.6 | 0.00009 | ||
| 3860082 | 2 | 5 | 2.3 | 0.15 | 0.6 | 0.00025 | ||
| 386008/2.5 | 2.5 | 6 | 2.6 | 0.15 | 0.8 | 0.00043 | ||
| 3860083 | 3 | 7 | 3 | 0.2 | 0.8 | 0.00053 | ||
| 3860084 | 4 | 9 | 4 | 0.2 | 1 | 0.0012 | ||
| 3860085 | 5 | 11 | 5 | 0.3 | 1 | 0.002 | ||
| 3860086 | 6 | 13 | 6 | 0.3 | 1.1 | - | ||
| 3860087 | 7 | 14 | 6 | 0.3 | 1.1 | - | ||
| 3860088 | 8 | 16 | 6 | 0.4 | 1.3 | - | ||
| 3860089 | 9 | 17 | 6 | 0.4 | 1.3 | - | ||
| 3860800 | 10 | 19 | 7 | 0.5 | 1.5 | - | ||
| 3860091 | 1 | 4 | 2.3 | 0.2 | 0.6 | 0.00014 | ||
| 386009/1.5 | 1.5 | 5 | 2.6 | 0.3 | 0.8 | 0.00034 | ||
| 3860092 | 2 | 6 | 3 | 0.3 | 0.8 | 0.00045 | ||
| 386009/2.5 | 2.5 | 7 | 3.5 | 0.3 | 0.9 | 0.00068 | ||
| 3860093 | 3 | 8 | 4 | 0.3 | 0.9 | 0.00095 | ||
| 3860094 | 4 | 11 | 4 | 0.3 | 1 | - | ||
| 3860095 | 5 | 13 | 6 | 0.4 | 1.2 | - | ||
| 3860096 | 6 | 15 | 7 | 0.4 | 1.5 | - | ||
| 3860097 | 7 | 17 | 7 | 0.5 | 1.5 | - | ||
| 3860098 | 8 | 19 | 9 | 0.5 | 1.8 | - | ||
| 3860099 | 9 | 20 | 9 | 0.5 | 1.8 | - | ||
| 3860900 | 10 | 22 | 10 | 0.5 | 2 | - | ||
