Подшипники роликовые радиальные с короткими цилиндрическими роликами без бортов на наружном кольце

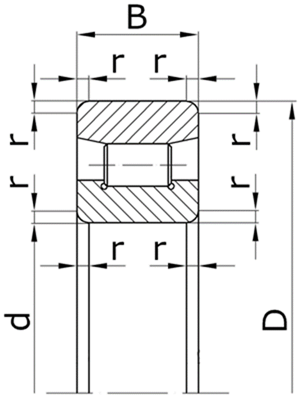

Схема
Обозначение | Размеры | Масса (кг) | ||||
---|---|---|---|---|---|---|
По ГОСТу | Международное | d | D | B | r | |
2104 | N1004 | 20 | 42 | 12 | 1 | 0.08 |
2105 | N1005 | 25 | 47 | 12 | 1 | 0.084 |
2106 | N1006 | 30 | 55 | 13 | 1.5 | 0.12 |
2107 | N1007 | 35 | 62 | 14 | 1.5 | 0.18 |
2108 | - | 40 | 68 | 15 | 1.5 | 0.22 |
2109 | - | 45 | 75 | 16 | 1.5 | 0.29 |
2110 | N1010 | 50 | 80 | 16 | 1.5 | 0.31 |
2111 | N1011 | 55 | 90 | 18 | 2 | 0.45 |
2112 | N1012 | 60 | 95 | 18 | 2 | 0.48 |
2113 | N1013 | 65 | 100 | 18 | 2 | 0.51 |
2114 | N1014 | 70 | 110 | 20 | 2 | 0.7 |
2115 | - | 75 | 115 | 20 | 2 | 0.74 |
2116 | - | 80 | 125 | 22 | 2 | 0.99 |
2117 | - | 85 | 130 | 22 | 2 | 1.05 |
2118 | N1018 | 90 | 140 | 24 | 2.5 | 1.35 |
2119 | - | 95 | 145 | 24 | 2.5 | 1.4 |
2120 | - | 100 | 150 | 24 | 2.5 | 1.45 |
2121 | - | 105 | 160 | 26 | 3 | 1.85 |
2122 | - | 110 | 170 | 28 | 3 | 2.3 |
2124 | N1024 | 120 | 180 | 28 | 3 | 2.45 |
2126 | - | 130 | 200 | 33 | 3 | 3.75 |
2128 | - | 140 | 210 | 33 | 3 | 4 |
2130 | - | 150 | 225 | 35 | 3.5 | 4.85 |
2132 | N1032 | 160 | 240 | 38 | 3.5 | 5.95 |
2134 | - | 170 | 260 | 42 | 3.5 | 7.9 |
2136 | - | 180 | 280 | 46 | 3.5 | 10.5 |
2138 | - | 190 | 290 | 46 | 3.5 | 10.9 |
2140 | - | 200 | 310 | 51 | 3.5 | 14 |
2144 | - | 220 | 340 | 56 | 4 | 18.5 |
2148 | - | 240 | 360 | 56 | 4 | 20 |
2152 | - | 260 | 400 | 65 | 5 | 29 |
2156 | - | 280 | 420 | 65 | 5 | 32.5 |
2160 | - | 300 | 460 | 74 | 5 | 44 |
2164 | - | 320 | 480 | 74 | 5 | 48.5 |
2168 | - | 340 | 520 | 82 | 6 | 65 |
2172 | - | 360 | 540 | 82 | 6 | 67.5 |
2176 | - | 380 | 560 | 82 | 6 | 71 |
2180 | - | 400 | 600 | 90 | 6 | 92.5 |
2184 | - | 420 | 620 | 90 | 6 | 96 |
2188 | - | 440 | 650 | 94 | 8 | 110 |
2192 | - | 460 | 680 | 100 | 8 | 125 |
2196 | - | 480 | 700 | 100 | 8 | 132 |
21/500 | - | 500 | 720 | 100 | 8 | 137 |
21/530 | - | 530 | 780 | 112 | 8 | 188 |
2202 | N202 | 15 | 35 | 11 | 1 | 0.047 |
2203 | N203 | 17 | 40 | 12 | 1 | 0.067 |
2204 | N204 | 20 | 47 | 14 | 1.5 | 0.11 |
2205 | N205 | 25 | 52 | 15 | 1.5 | 0.13 |
2206 | N206 | 30 | 62 | 16 | 1.5 | 0.2 |
2207 | N207 | 35 | 72 | 17 | 2 | 0.29 |
2208 | N208 | 40 | 80 | 18 | 2 | 0.37 |
2209 | N209 | 45 | 85 | 19 | 2 | 0.43 |
2210 | N210 | 50 | 90 | 20 | 2 | 0.48 |
2211 | N211 | 55 | 100 | 21 | 2.5 | 0.64 |
2212 | N212 | 60 | 110 | 22 | 2.5 | 0.82 |
2213 | N213 | 65 | 120 | 23 | 2.5 | 1.05 |
2214 | N214 | 70 | 125 | 24 | 2.5 | 1.15 |
2215 | N215 | 75 | 130 | 25 | 2.5 | 1.25 |
2216 | N216 | 80 | 140 | 26 | 3 | 1.5 |
2217 | N217 | 85 | 150 | 28 | 3 | 1.9 |
2218 | N218 | 90 | 160 | 30 | 3 | 2.3 |
2219 | N219 | 95 | 170 | 32 | 3.5 | 2.8 |
2220 | N220 | 100 | 180 | 34 | 3.5 | 3.4 |
2221 | N221 | 105 | 190 | 36 | 3.5 | 4 |
2222 | N222 | 110 | 200 | 38 | 3.5 | 4.65 |
2224 | N224 | 120 | 215 | 40 | 3.5 | 5.65 |
2226 | N226 | 130 | 230 | 40 | 4 | 6.5 |
2228 | N228 | 140 | 250 | 42 | 4 | 8.25 |
2230 | N230 | 150 | 270 | 45 | 4 | 10.5 |
2232 | N232 | 160 | 290 | 48 | 4 | 15 |
2234 | - | 170 | 310 | 52 | 5 | 18.5 |
2236 | - | 180 | 320 | 52 | 5 | 19.5 |
2238 | - | 190 | 340 | 55 | 5 | 23.5 |
2240 | - | 200 | 360 | 58 | 5 | 27.5 |
2244 | - | 220 | 400 | 65 | 5 | 38.5 |
2248 | - | 240 | 440 | 72 | 5 | 52 |
2252 | - | 260 | 480 | 80 | 6 | 68.6 |
2256 | - | 280 | 500 | 80 | 6 | 71.8 |
2260 | - | 300 | 540 | 85 | 6 | 89.7 |
2264 | - | 320 | 580 | 92 | 6 | 113 |
2302 | - | 15 | 42 | 13 | 1.5 | 0.11 |
2303 | N303 | 17 | 47 | 14 | 1.5 | 0.12 |
2304 | N304 | 20 | 52 | 15 | 2 | 0.15 |
2305 | N305 | 25 | 62 | 17 | 2 | 0.24 |
2306 | N306 | 30 | 72 | 19 | 2 | 0.36 |
2307 | N307 | 35 | 80 | 21 | 2.5 | 0.48 |
2308 | N308 | 40 | 90 | 23 | 2.5 | 0.66 |
2309 | N309 | 45 | 100 | 25 | 2.5 | 0.87 |
2310 | N310 | 50 | 110 | 27 | 3 | 1.15 |
2311 | N311 | 55 | 120 | 29 | 3 | 1.45 |
2312 | N312 | 60 | 130 | 31 | 3.5 | 1.85 |
2313 | N313 | 65 | 140 | 33 | 3.5 | 2.25 |
2314 | N314 | 70 | 150 | 35 | 3.5 | 2.75 |
2315 | N315 | 75 | 160 | 37 | 3.5 | 3.25 |
2316 | N316 | 80 | 170 | 39 | 3.5 | 3.9 |
2317 | N317 | 85 | 180 | 41 | 4 | 4.5 |
2318 | N318 | 90 | 190 | 43 | 4 | 5.4 |
2319 | N319 | 95 | 200 | 45 | 4 | 6.2 |
2320 | N320 | 100 | 215 | 47 | 4 | 7.7 |
2321 | N321 | 105 | 225 | 49 | 4 | 8.75 |
2322 | N322 | 110 | 240 | 50 | 4 | 10.5 |
2324 | N324 | 120 | 260 | 55 | 4 | 13 |
2326 | N326 | 130 | 280 | 58 | 5 | 16.5 |
2328 | N328 | 140 | 300 | 62 | 5 | 20 |
2330 | N330 | 150 | 320 | 65 | 5 | 27 |
2332 | - | 160 | 340 | 68 | 5 | 32 |
2334 | N334 | 170 | 360 | 72 | 5 | 38.5 |
2336 | - | 180 | 380 | 75 | 5 | 42.5 |
2338 | N338 | 190 | 400 | 78 | 5 | 50 |
2340 | N340 | 200 | 420 | 80 | 6 | 56 |
2344 | - | 220 | 460 | 88 | 6 | 72.5 |
2348 | - | 240 | 500 | 95 | 6 | 94.7 |
2352 | - | 260 | 540 | 102 | 8 | 117 |
2356 | - | 280 | 580 | 108 | 8 | 141 |
2360 | - | 300 | 620 | 109 | 10 | 165 |
2406 | - | 30 | 90 | 23 | 2.5 | 0.75 |
2407 | - | 35 | 100 | 25 | 2.5 | 1 |
2408 | - | 40 | 110 | 27 | 3 | 1.3 |
2409 | N409 | 45 | 120 | 29 | 3 | 1.65 |
2410 | 50 | 130 | 31 | 3.5 | 2 | |
2411 | N411 | 55 | 140 | 33 | 3.5 | 2.5 |
2412 | N412 | 60 | 150 | 35 | 3.5 | 3 |
2413 | N413 | 65 | 160 | 37 | 3.5 | 3.6 |
2414 | N414 | 70 | 180 | 42 | 4 | 5.25 |
2415 | - | 75 | 190 | 45 | 4 | 6.25 |
2416 | N416 | 80 | 200 | 48 | 4 | 7.3 |
2417 | - | 85 | 210 | 52 | 5 | 8.7 |
2418 | - | 90 | 225 | 54 | 5 | 10.5 |
2419 | - | 95 | 240 | 55 | 5 | 13.5 |
2420 | - | 100 | 250 | 58 | 5 | 14 |
2421 | - | 105 | 260 | 60 | 5 | 19 |
2422 | - | 110 | 280 | 65 | 5 | 20 |
2424 | - | 120 | 310 | 72 | 6 | 28 |
2426 | - | 130 | 340 | 78 | 6 | 36.1 |
2428 | - | 140 | 360 | 82 | 6 | 46.8 |
2430 | - | 150 | 380 | 85 | 6 | 53.3 |
2432 | - | 160 | 400 | 88 | 6 | 60.8 |
2434 | - | 170 | 420 | 92 | 6 | 69.7 |
2436 | - | 180 | 440 | 95 | 8 | 79 |
2438 | - | 190 | 460 | 98 | 8 | 87.9 |
2440 | - | 200 | 480 | 102 | 8 | 98.8 |
2444 | - | 220 | 540 | 115 | 8 | 143 |
2448 | - | 240 | 580 | 122 | 8 | 174 |
2503 | - | 17 | 40 | 16 | 1 | 0.089 |
2504 | - | 20 | 47 | 18 | 1.5 | 0.14 |
2505 | N2205 | 25 | 52 | 18 | 1.5 | 0.16 |
2506 | - | 30 | 62 | 20 | 1.5 | 0.26 |
2507 | - | 35 | 72 | 23 | 2 | 0.4 |
2508 | - | 40 | 80 | 23 | 2 | 0.49 |
2509 | N2209 | 45 | 85 | 23 | 2 | 0.54 |
2510 | - | 50 | 90 | 23 | 2 | 0.58 |
2511 | - | 55 | 100 | 25 | 2.5 | 0.78 |
2512 | - | 60 | 110 | 28 | 2.5 | 1.05 |
2513 | - | 65 | 120 | 31 | 2.5 | 1.45 |
2514 | - | 70 | 125 | 31 | 2.5 | 1.5 |
2515 | - | 75 | 130 | 31 | 2.5 | 1.55 |
2516 | - | 80 | 140 | 33 | 3 | 1.95 |
2517 | - | 85 | 150 | 36 | 3 | 2.5 |
2518 | - | 90 | 160 | 40 | 3 | 3.1 |
2519 | N2219 | 95 | 170 | 43 | 3.5 | 3.85 |
2520 | - | 100 | 180 | 46 | 3.5 | 4.65 |
2522 | - | 110 | 200 | 53 | 3.5 | 6.96 |
2524 | N2224 | 120 | 215 | 58 | 3.5 | 8.55 |
2526 | - | 130 | 230 | 64 | 4 | 10.5 |
2528 | - | 140 | 250 | 68 | 4 | 13.5 |
2530 | - | 150 | 270 | 73 | 4 | 17 |
2532 | - | 160 | 290 | 80 | 4 | 24 |
2534 | - | 170 | 310 | 86 | 5 | 30 |
2536 | - | 180 | 320 | 86 | 5 | 31.5 |
2538 | - | 190 | 340 | 92 | 5 | 39 |
2540 | - | 200 | 360 | 98 | 5 | 47.5 |
2544 | - | 220 | 400 | 108 | 5 | 61.5 |
2548 | - | 240 | 440 | 120 | 5 | 84 |
2552 | - | 260 | 480 | 130 | 6 | 110 |
2556 | N2256 | 280 | 500 | 130 | 6 | 115 |
2560 | - | 300 | 540 | 140 | 6 | 145 |
2564 | - | 320 | 580 | 150 | 6 | 180 |
2568 | - | 340 | 620 | 165 | 8 | 225 |
2572 | - | 360 | 650 | 170 | 8 | 260 |
2576 | - | 380 | 680 | 175 | 8 | 285 |
2604 | - | 20 | 52 | 21 | 2 | 0.21 |
2605 | - | 25 | 62 | 24 | 2 | 0.34 |
2606 | - | 30 | 72 | 27 | 2 | 0.5 |
2607 | - | 35 | 80 | 31 | 2.5 | 0.7 |
2608 | - | 40 | 90 | 33 | 2.5 | 0.96 |
2609 | N2309 | 45 | 100 | 36 | 2.5 | 1.25 |
2610 | - | 50 | 110 | 40 | 3 | 1.7 |
2611 | N2311 | 55 | 120 | 43 | 3 | 2.1 |
2612 | N2312 | 60 | 130 | 46 | 3.5 | 2.7 |
2613 | - | 65 | 140 | 48 | 3.5 | 3.25 |
2614 | N2314 | 70 | 150 | 51 | 3.5 | 3.95 |
2615 | N2315 | 75 | 160 | 55 | 3.5 | 4.85 |
2616 | - | 80 | 170 | 58 | 3.5 | 5.85 |
2617 | - | 85 | 180 | 60 | 4 | 6.6 |
2618 | N2318 | 90 | 190 | 64 | 4 | 7.9 |
2619 | N2319 | 95 | 200 | 67 | 4 | 10.4 |
2620 | - | 100 | 215 | 73 | 4 | 12 |
2622 | - | 110 | 240 | 80 | 4 | 19 |
2624 | - | 120 | 260 | 86 | 4 | 24 |
2626 | N2326 | 130 | 280 | 93 | 5 | 30 |
2628 | - | 140 | 300 | 102 | 5 | 37.5 |
2630 | - | 150 | 320 | 108 | 5 | 45 |
2632 | - | 160 | 340 | 114 | 5 | 53.5 |
2634 | - | 170 | 360 | 120 | 5 | 62.5 |
2636 | - | 180 | 380 | 126 | 5 | 73 |
2638 | - | 190 | 400 | 132 | 6 | 85 |
2640 | - | 200 | 420 | 138 | 6 | 97 |
2644 | - | 220 | 460 | 145 | 6 | 125 |
2648 | - | 240 | 500 | 155 | 6 | 155 |
2652 | - | 260 | 540 | 165 | 8 | 190 |
2656 | - | 280 | 580 | 175 | 8 | 235 |
2660 | - | 300 | 620 | 185 | 10 | 279 |
1002907 | - | 35 | 55 | 10 | 1 | - |
1002908 | - | 40 | 62 | 12 | 1 | - |
1002909 | - | 45 | 68 | 12 | 1 | - |
1002910 | - | 50 | 72 | 12 | 1 | - |
1002911 | - | 55 | 80 | 13 | 1.5 | - |
1002912 | - | 60 | 85 | 13 | 1.5 | 0.25 |
1002913 | - | 65 | 90 | 13 | 1.5 | - |
1002914 | - | 70 | 100 | 16 | 1.5 | - |
1002915 | - | 75 | 105 | 16 | 1.5 | - |
1002916 | - | 80 | 110 | 16 | 1.5 | 0.47 |
1002917 | - | 85 | 120 | 18 | 2 | 0.6 |
1002918 | - | 90 | 125 | 18 | 2 | - |
1002920 | - | 100 | 140 | 20 | 2 | 0.88 |
1002922 | - | 110 | 150 | 20 | 2 | - |
1002924 | - | 120 | 165 | 22 | 2 | 1.26 |
1002926 | - | 130 | 180 | 24 | 2.5 | 2.05 |
1002928 | - | 140 | 190 | 24 | 2.5 | 2.46 |
1002930 | - | 150 | 210 | 28 | 3 | 2.8 |
1002932 | - | 160 | 220 | 28 | 3 | 3.34 |
1002934 | - | 170 | 230 | 28 | 3 | - |
1002936 | - | 180 | 250 | 33 | 3 | - |
1002938 | - | 190 | 260 | 33 | 3 | - |
1002940 | - | 200 | 280 | 38 | 3.5 | - |
1002944 | - | 220 | 300 | 38 | 3.5 | - |
1002948 | - | 240 | 320 | 38 | 3.5 | 8.37 |
1002952 | - | 260 | 360 | 46 | 3.5 | 14.5 |
1002956 | - | 280 | 380 | 46 | 3.5 | 16 |
