Подшипники радиальные роликовые игольчатые однорядные без колец

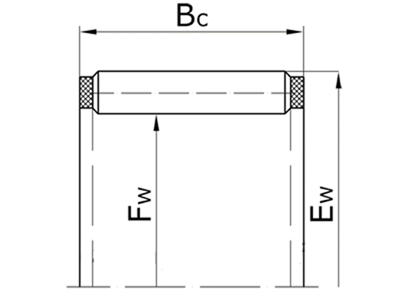

Схема
Обозначение | Размеры | Масса (кг) | |||
---|---|---|---|---|---|
По ГОСТу | Международное | Bc | Fw | Ew | |
К5x8x8 | K5x8x8TN | 8 | 5 | 8 | 0.0007 |
К6x9x8 | K6x9x8TN | 8 | 6 | 9 | 0.0008 |
К6x9x10 | K6x9x10TN | 10 | 6 | 9 | 0.001 |
К7x10x8 | K7x10x8TN | 8 | 7 | 10 | 0.0009 |
К7x10x10 | K7x10x10TN | 10 | 7 | 10 | 0.0011 |
К8x11x10 | K8x11x10TN | 10 | 8 | 11 | 0.002 |
К8x11x13 | K8x11x13TN | 13 | 8 | 11 | 0.003 |
К9x12x10 | K9x12x10TN | 10 | 9 | 12 | 0.003 |
К9x12x13 | K9x12x13TN | 13 | 9 | 12 | 0.004 |
К10x13x10 | K10x13x10TN | 10 | 10 | 13 | 0.002 |
К10x13x13 | K10x13x13TN | 13 | 10 | 13 | 0.004 |
К12x15x10 | K12x15x10TN | 10 | 12 | 15 | 0.003 |
К12x15x13 | K12x15x13TN | 13 | 12 | 15 | 0.004 |
К14x18x10 | K14x18x10 | 10 | 14 | 18 | 0.005 |
К14x18x13 | K14x18x13 | 13 | 14 | 18 | 0.007 |
К14x18x17 | K14x18x17 | 17 | 14 | 18 | 0.008 |
К15x19x10 | K15x19x10 | 10 | 15 | 19 | 0.005 |
К15x19x13 | K15x19x13 | 13 | 15 | 19 | 0.007 |
К15x19x17 | K15x19x17 | 17 | 15 | 19 | 0.009 |
К15x19x20 | - | 20 | 15 | 19 | 0.012 |
К16x20x10 | K16x20x10 | 10 | 16 | 20 | 0.006 |
К16x20x13 | K16x20x13 | 13 | 16 | 20 | 0.007 |
К16x20x17 | K16x20x17 | 17 | 16 | 20 | 0.009 |
К16x20x20 | - | 20 | 16 | 20 | 0.01 |
К17x21x10 | K17x21x10 | 10 | 17 | 21 | 0.005 |
К17x21x13 | K17x21x13 | 13 | 17 | 21 | 0.008 |
К18x22x10 | K18x22x10 | 10 | 18 | 22 | 0.006 |
К18x22x13 | K18x22x13 | 13 | 18 | 22 | 0.008 |
К18x22x17 | K18x22x17 | 17 | 18 | 22 | 0.01 |
К18x22x20 | - | 20 | 18 | 22 | 0.014 |
К20x24x10 | K20x24x10 | 10 | 20 | 24 | 0.007 |
К20x24x13 | K20x24x13 | 13 | 20 | 24 | 0.009 |
К20x24x17 | K20x24x17 | 17 | 20 | 24 | 0.011 |
К22x26x10 | K22x26x10 | 10 | 22 | 26 | 0.006 |
К22x26x13 | K22x26x13 | 13 | 22 | 26 | 0.01 |
К22x26x17 | K22x26x17 | 17 | 22 | 26 | 0.012 |
К25x29x10 | K25x29x10 | 10 | 25 | 29 | 0.008 |
К25x29x13 | K25x29x13 | 13 | 25 | 29 | 0.014 |
К28x33x13 | K28x33x13 | 13 | 28 | 33 | 0.015 |
К28x33x17 | K28x33x17 | 17 | 28 | 33 | 0.02 |
К28x33x27 | - | 27 | 28 | 33 | 0.031 |
К30x35x13 | K30x35x13 | 13 | 30 | 35 | 0.017 |
К30x35x17 | K30x35x17 | 17 | 30 | 35 | 0.022 |
К30x35x20 | - | 20 | 30 | 35 | 0.025 |
К32x37x13 | K32x37x13 | 13 | 32 | 37 | 0.021 |
К32x37x17 | K32x37x17 | 17 | 32 | 37 | 0.022 |
К32x37x27 | K32x37x27 | 27 | 32 | 37 | 0.042 |
К35x40x13 | K35x40x13 | 13 | 35 | 40 | 0.019 |
К35x40x17 | K35x40x17 | 17 | 35 | 40 | 0.026 |
К40x45x17 | K40x45x17 | 17 | 40 | 45 | 0.029 |
К40x45x27 | K40x45x27 | 27 | 40 | 45 | 0.041 |
К42x47x13 | K42x47x13 | 13 | 42 | 47 | 0.023 |
К42x47x17 | K42x47x17 | 17 | 42 | 47 | 0.035 |
К45x50x17 | K45x50x17 | 17 | 45 | 50 | 0.032 |
К45x50x23 | - | 23 | 45 | 50 | - |
К45x50x27 | K45x50x27 | 27 | 45 | 50 | 0.058 |
К50x55x20 | K50x55x20 | 20 | 50 | 55 | 0.04 |
К50x55x27 | - | 27 | 50 | 55 | - |
К55x61x20 | - | 20 | 55 | 61 | - |
К55x61x30 | - | 30 | 55 | 61 | - |
К60x66x20 | - | 20 | 60 | 66 | - |
К60x66x30 | - | 30 | 60 | 66 | - |
К70x76x15 | - | 15 | 70 | 76 | - |
К70x76x20 | K70x76x20 | 20 | 70 | 76 | 0.082 |
К70x76x30 | K70x76x30 | 30 | 70 | 76 | 0.121 |
К75x81x20 | K75x81x20 | 20 | 75 | 81 | 0.072 |
К75x81x30 | K75x81x30 | 30 | 75 | 81 | 0.106 |
К80x86x20 | K80x86x20 | 20 | 80 | 86 | 0.094 |
К85x92x20 | K85x92x20 | 20 | 85 | 92 | 0.096 |
К100x107x35 | - | 35 | 100 | 107 | - |
