Подшипники упорные шариковые
/ Подшипники упорные шариковые одинарные со свободным самоустанавливающимся кольцом и подкладным кольцом
Подшипники упорные шариковые одинарные со свободным самоустанавливающимся кольцом и подкладным кольцом

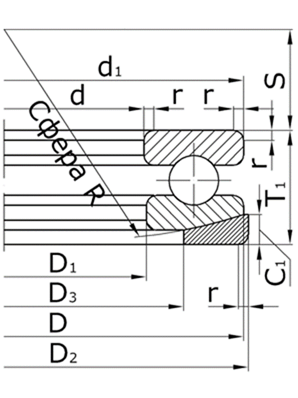

Схема
Обозначение | Размеры | Масса (кг) | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
По ГОСТу | Международное | d | D | d1 | D2 | r | D1 | D3 | c1 | t1 | |
18200 | - | 10 | 26 | 26 | 28 | 1 | 12 | 18 | 3.5 | 13 | 0.038 |
18201 | 53201+U201 | 12 | 28 | 28 | 30 | 1 | 14 | 20 | 3.5 | 13 | 0.045 |
18202 | 53202+U202 | 15 | 32 | 32 | 35 | 1 | 17 | 24 | 4 | 15 | 0.063 |
18203 | 53203+U203 | 17 | 35 | 35 | 38 | 1 | 19 | 26 | 4 | 15 | 0.071 |
18204 | 53204+U204 | 20 | 40 | 40 | 42 | 1 | 22 | 30 | 5 | 17 | 0.102 |
18205 | 53205+U205 | 25 | 47 | 47 | 50 | 1 | 27 | 36 | 5.5 | 19 | 0.155 |
18206 | 53206+U206 | 30 | 52 | 52 | 55 | 1 | 32 | 42 | 5.5 | 20 | 0.182 |
18207 | 53207+U207 | 35 | 62 | 62 | 65 | 1.5 | 37 | 48 | 7 | 22 | 0.279 |
18208 | 53208+U208 | 40 | 68 | 68 | 72 | 1.5 | 42 | 55 | 7 | 23 | 0.35 |
18209 | 53209+U209 | 45 | 73 | 73 | 78 | 1.5 | 47 | 60 | 7.5 | 24 | 0.388 |
18210 | 53210+U210 | 50 | 78 | 78 | 82 | 1.5 | 52 | 62 | 7.5 | 26 | 0.464 |
18211 | 53211+U211 | 55 | 90 | 90 | 95 | 1.5 | 57 | 72 | 9 | 30 | 0.752 |
18212 | 53212+U212 | 60 | 95 | 95 | 100 | 1.5 | 62 | 78 | 9 | 31 | 0.817 |
18213 | 53213+U213 | 65 | 100 | 100 | 105 | 1.5 | 67 | 82 | 9 | 32 | 0.912 |
18214 | 53214+U214 | 70 | 105 | 105 | 110 | 1.5 | 72 | 88 | 9 | 32 | 0.967 |
18215 | 53215+U215 | 75 | 110 | 110 | 115 | 1.5 | 77 | 92 | 9.5 | 32 | 1.018 |
18216 | 53216+U216 | 80 | 115 | 115 | 120 | 1.5 | 82 | 98 | 10 | 33 | 1.118 |
18217 | 53217+U217 | 85 | 125 | 125 | 130 | 1.5 | 88 | 105 | 11 | 37 | 1.51 |
18218 | 53218+U218 | 90 | 135 | 135 | 140 | 2 | 93 | 110 | 13.5 | 42 | 2.12 |
18220 | 53220+U220 | 100 | 150 | 150 | 155 | 2 | 103 | 125 | 14 | 45 | 2.72 |
18222 | 53222+U222 | 110 | 160 | 160 | 165 | 2 | 113 | 135 | 14 | 45 | 2.93 |
18224 | 53224+U224 | 120 | 170 | 170 | 175 | 2 | 123 | 145 | 15 | 46 | 3.22 |
18226 | 53226+U226 | 130 | 190 | 187 | 195 | 2.5 | 133 | 160 | 17 | 53 | 4.83 |
18228 | 53228+U228 | 140 | 200 | 197 | 210 | 2.5 | 143 | 170 | 17 | 55 | 5.49 |
18230 | - | 150 | 215 | 212 | 225 | 2.5 | 153 | 180 | 20.5 | 60 | 7.66 |
18232 | - | 160 | 225 | 222 | 235 | 2.5 | 163 | 190 | 21 | 61 | 8.25 |
18234 | - | 170 | 240 | 237 | 250 | 2.5 | 173 | 200 | 21.5 | 65 | 10.07 |
18236 | - | 180 | 250 | 247 | 260 | 2.5 | 183 | 210 | 21.5 | 66 | 10.6 |
18238 | - | 190 | 270 | 267 | 280 | 3 | 194 | 230 | 23 | 73 | 14 |
18240 | - | 200 | 280 | 277 | 290 | 3 | 204 | 240 | 23 | 74 | 14.5 |
18244 | - | 220 | 300 | 297 | 310 | 3 | 224 | 260 | 25 | 75 | 16.1 |
18248 | - | 240 | 340 | 335 | 350 | 3.5 | 244 | 290 | 30 | 92 | 26.1 |
18252 | - | 260 | 360 | 355 | 370 | 3.5 | 264 | 305 | 30 | 93 | 29.1 |
18256 | - | 280 | 380 | 375 | 390 | 3.5 | 284 | 325 | 31 | 94 | 31.5 |
18260 | - | 300 | 420 | 415 | 430 | 4 | 304 | 360 | 34 | 112 | 49.8 |
18264 | - | 320 | 440 | 435 | 450 | 4 | 325 | 380 | 36 | 112 | 53.3 |
18268 | - | 340 | 480 | 475 | 470 | 4 | 345 | 400 | 36 | 113 | 54.7 |
18272 | - | 360 | 500 | 495 | 510 | 5 | 365 | 430 | 43 | 130 | 81.5 |
18305 | - | 25 | 52 | 52 | 55 | 1.5 | 27 | 38 | 6 | 22 | 0.22 |
18306 | 53306+U306 | 30 | 60 | 60 | 62 | 1.5 | 32 | 45 | 7 | 25 | 0.322 |
18307 | 53307+U307 | 35 | 68 | 68 | 72 | 1.5 | 37 | 52 | 7.5 | 28 | 0.463 |
18308 | 53308+U308 | 40 | 78 | 78 | 82 | 1.5 | 42 | 60 | 8.5 | 31 | 0.673 |
18309 | 53309+U309 | 45 | 85 | 85 | 90 | 1.5 | 47 | 65 | 10 | 33 | 0.83 |
18310 | 53310+U310 | 50 | 95 | 95 | 100 | 2 | 52 | 72 | 11 | 37 | 1.202 |
18311 | 53311+U311 | 55 | 105 | 105 | 110 | 2 | 57 | 80 | 11.5 | 42 | 1.66 |
18312 | 53312+U312 | 60 | 110 | 110 | 115 | 2 | 62 | 85 | 11.5 | 42 | 1.72 |
18313 | 53313+U313 | 65 | 115 | 115 | 120 | 2 | 67 | 90 | 12.5 | 43 | 1.87 |
18314 | 53314+U314 | 70 | 125 | 125 | 130 | 2 | 72 | 98 | 13 | 48 | 2.51 |
18315 | 53315+U315 | 75 | 135 | 135 | 140 | 2.5 | 77 | 105 | 15 | 52 | 3.22 |
18316 | 53316+U316 | 80 | 140 | 140 | 145 | 2.5 | 82 | 110 | 15 | 52 | 3.34 |
18317 | 53317+U317 | 85 | 150 | 150 | 155 | 2.5 | 88 | 115 | 17.5 | 58 | 4.34 |
18318 | 53318+U318 | 90 | 155 | 155 | 160 | 2.5 | 93 | 120 | 18 | 59 | 4.67 |
18320 | 53320+U320 | 100 | 170 | 170 | 175 | 2.5 | 103 | 135 | 18 | 64 | 5.93 |
18322 | 53322+U322 | 110 | 190 | 187 | 195 | 3 | 113 | 150 | 20.5 | 72 | 9.11 |
18324 | 53324+U324 | 120 | 210 | 205 | 220 | 3.5 | 123 | 165 | 22 | 80 | 12.6 |
18326 | - | 130 | 225 | 220 | 235 | 3.5 | 134 | 177 | 26 | 86 | 15.4 |
18328 | - | 140 | 240 | 235 | 250 | 3.5 | 144 | 190 | 26 | 92 | 18.5 |
18330 | - | 150 | 250 | 245 | 260 | 3.5 | 154 | 200 | 26 | 92 | 19.2 |
18332 | - | 160 | 270 | 265 | 280 | 4 | 164 | 215 | 29 | 100 | 25.6 |
18334 | - | 170 | 280 | 275 | 290 | 4 | 174 | 220 | 29 | 100 | 27.1 |
18336 | - | 180 | 300 | 295 | 310 | 4 | 184 | 240 | 32 | 109 | 32.7 |
18338 | - | 190 | 320 | 315 | 330 | 5 | 195 | 255 | 33 | 121 | 43.1 |
18340 | - | 200 | 340 | 335 | 350 | 5 | 205 | 270 | 38 | 130 | 52.2 |
18405 | - | 25 | 60 | 60 | 62 | 1.5 | 27 | 42 | 8 | 29 | 0.402 |
18406 | - | 30 | 70 | 70 | 75 | 1.5 | 32 | 50 | 9 | 33 | 0.647 |
18407 | - | 35 | 80 | 80 | 85 | 2 | 37 | 58 | 10 | 37 | 0.936 |
18408 | 53408+U408 | 40 | 90 | 90 | 95 | 2 | 42 | 65 | 12 | 42 | 1.34 |
18409 | - | 45 | 100 | 100 | 105 | 2 | 47 | 72 | 12.5 | 46 | 1.79 |
18410 | 53410+U410 | 50 | 110 | 110 | 115 | 2.5 | 52 | 80 | 14 | 50 | 2.33 |
18411 | 53411+U411 | 55 | 120 | 120 | 125 | 2.5 | 57 | 88 | 15.5 | 55 | 3.03 |
18412 | 53412+U412 | 60 | 130 | 130 | 135 | 2.5 | 62 | 95 | 16 | 58 | 3.83 |
18413 | - | 65 | 140 | 140 | 145 | 3 | 68 | 110 | 17.5 | 65 | 5.37 |
18414 | 53414+U414 | 70 | 150 | 150 | 155 | 3 | 73 | 110 | 19.5 | 69 | 6.51 |
18415 | 53415+U415 | 75 | 160 | 160 | 165 | 3 | 78 | 115 | 21 | 75 | 8.09 |
18416 | 53416+U416 | 80 | 170 | 170 | 175 | 3.5 | 83 | 125 | 22 | 78 | 9.07 |
18417 | - | 85 | 180 | 177 | 185 | 3.5 | 88 | 130 | 23 | 63 | 11.02 |
18418 | 53418+U418 | 90 | 190 | 187 | 195 | 3.5 | 93 | 140 | 25.5 | 88 | 13 |
18420 | 53420+U420 | 100 | 210 | 205 | 220 | 4 | 103 | 155 | 27 | 98 | 17.7 |
18422 | - | 110 | 230 | 225 | 240 | 4 | 113 | 170 | 29 | 109 | 23.4 |
18424 | - | 120 | 250 | 245 | 260 | 5 | 123 | 185 | 32 | 118 | 29.9 |
18426 | - | 130 | 270 | 265 | 280 | 5 | 134 | 200 | 38 | 128 | 38.5 |
18428 | - | 140 | 280 | 275 | 290 | 5 | 144 | 206 | 38 | 131 | 40.3 |
18430 | - | 150 | 300 | 295 | 310 | 5 | 154 | 225 | 41 | 140 | 48.6 |
18432 | - | 160 | 320 | 315 | 330 | 6 | 164 | 240 | 41.5 | 150 | 60.5 |
18434 | - | 170 | 340 | 335 | 350 | 6 | 174 | 255 | 46 | 156 | 68 |
18436 | - | 180 | 360 | 355 | 370 | 6 | 184 | 270 | 46.5 | 164 | 82.7 |
